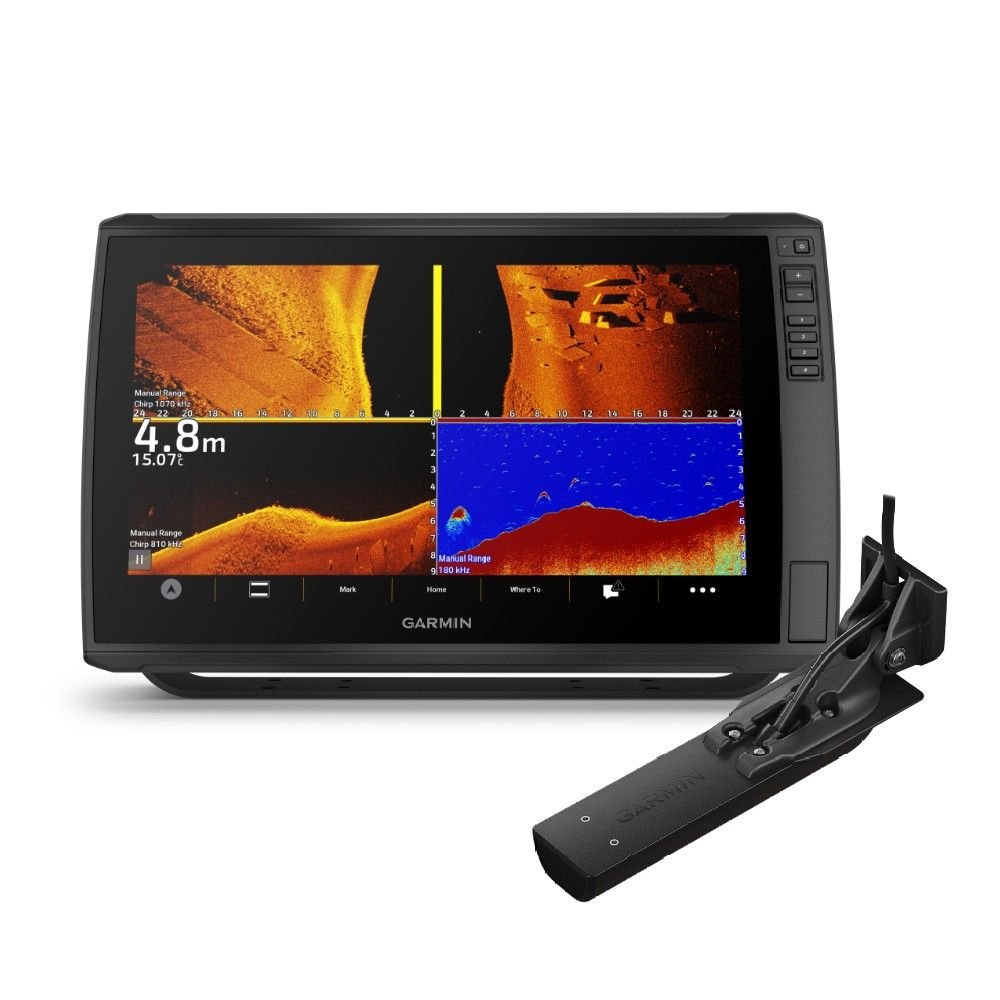

Garmin 16″ ECHOMAP Ultra2 162sv
Price range: £4,295.00 through £4,565.00
Exc VAT
16″ Touchscreen Garmin Echomap
All the tools needed for successful fishing with big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters provide a world of fishfinding capability They support Garmin Navionics+ and Garmin Navionics Vision+ mapping.
- 16″ Touchscreen
- Supports LiveScope Sonar and More
- Supports Garmin Navionics+ and Garmin Navionics Vision+ Mapping
- Wirelessly share sonar, waypoints and routes
- Capture screen recordings to share fish catches
- Multi-band GPS for improved position accuracy
What To Love
LiveScope Sonar Support - The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

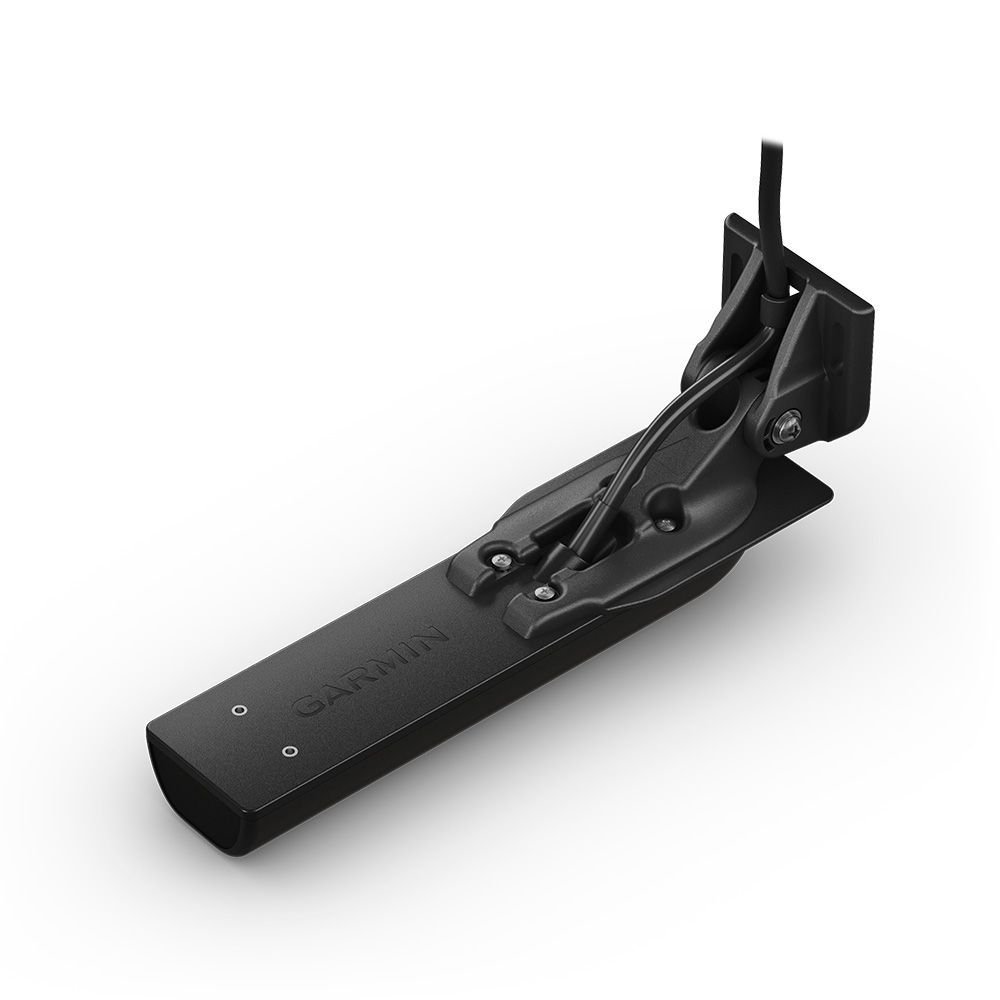

Built-in UHD Sonar - Select models are bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for photo-like images of what’s beneath the surface.
Vivid colour palettes - High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
Charts & Maps - Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics+ or premium Garmin Navionics Vision+ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+ technology and more.

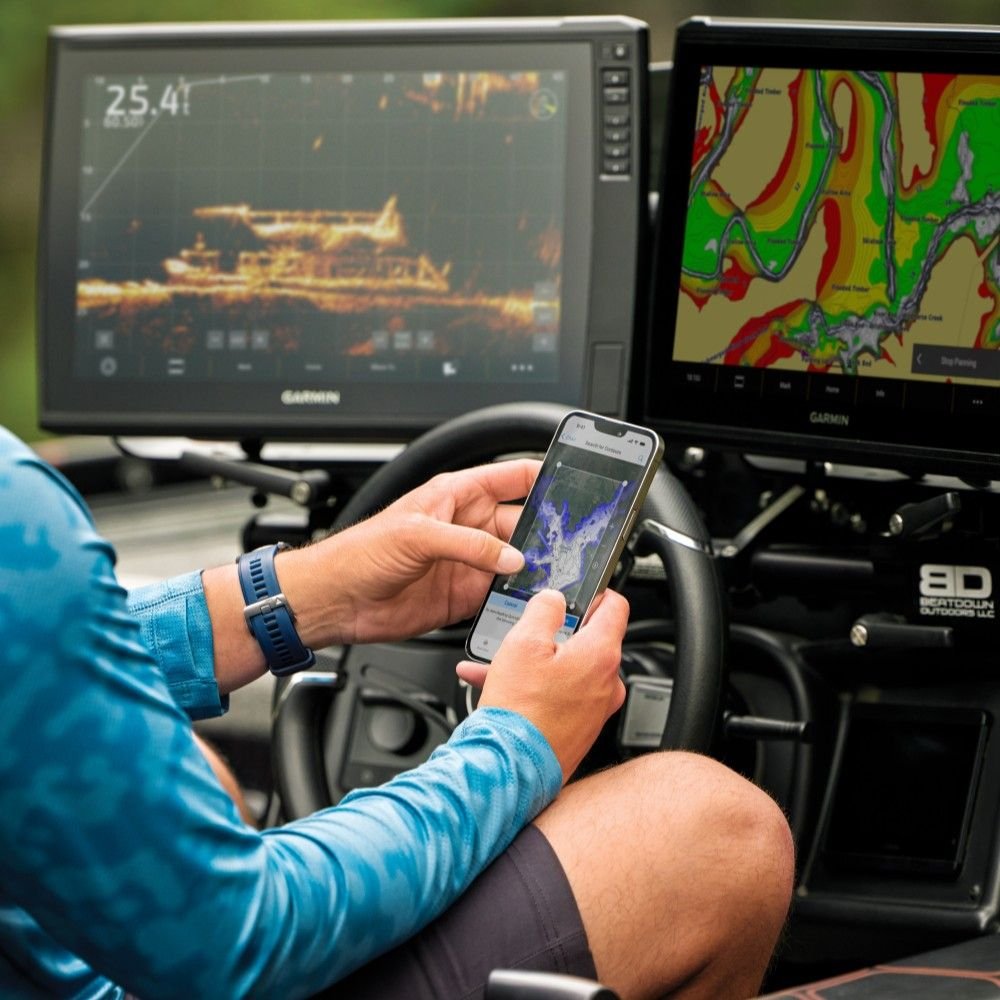

Wireless Networking - Connect another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat and wirelessly share information such as sonar, waypoints and routes.
Additional information
| Variation | Display Only, With Transducer |
|---|
Manual
Specifications
| General | |
|---|---|
| Dimensions | 29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″) |
| Weight | 1.8Kg (4lbs) |
| Water Rating | IPX7 |
| Touchscreen | ✓ |
| Display Type | WXGA IPS |
| Display Size | 21.7 x 13.6 cm, 21.7cm Diagonal (8.5″ x 5.4″; 10″ Diagonal) |
| Display Resolution | 1280 x 800 pixels |
| Mounting Options | Bail or Flush |
| Input | Touchscreen with keyed assist |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 2 microSD Cards |
| Waypoints | 5,000 |
| Track Points | 50,000 |
| tracks | 50 Saved Tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | ✓ |
| GLONASS | ✓ |
| GALILEO | ✓ |
| BEIDOU | ✓ |
| Built-in Receiver | ✓ |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | ✓ |
| Supports WAAS | ✓ |
| Supports Multi-Band, Multi-Constellation GPS | ✓ |
| Optional Map Support | |
|---|---|
| BlueChart G3 | ✓ |
| BlueChart G3 Vision | ✓ |
| Garmin Navionics+ | ✓ |
| Garmin Navionics Vision+ | ✓ |
| TOPO 100k | ✓ |
| Standard Mapping | ✓ |
| Garmin Quickdraw Contours | ✓ |
| Chartplotter Features | |
|---|---|
| AIS | ✓ |
| DSC | ✓ |
| Fusion-Link | ✓ |
| ActiveCaptain App Compatible | ✓ |
| Sailing Features | ✓ |
| Electrical Features | |
|---|---|
| Power Input | 10 – 18 VDC |
| Typical Current Draw at 12V | 2.3A |
| Max Current at 12V | 5A |
| Max Power Use at 10V | 34W |
| Sonar Features & Specifications | |
|---|---|
| Displays Sonar | ✓ |
| Power Output | 600 W |
| Traditional Sonar | Built-in (Single channel CHIRP, 70/83/200 kHz, L/M/H CHIRP) |
| ClearVu | Built-in 260/455/800/1000/1200 kHz |
| SideVu | Built-in 260/455/800/1000/1200 kHz |
| Panoptix Sonar | ✓ |
| Livescope | ✓ |
| Connections | |
|---|---|
| NMEA 2000 Ports | 1 |
| Garmin Marine Network Ports | 2 (Large connector) |
| 12 Pin Transducer Ports | 1 x 12-pin scanning sonar |
| ANT+ | ✓ |
| Garmin Wi-Fi Network | ✓ |
In the box
- ECHOMAP Ultra 102sv
- Charging/data cable
- Bail Mount With Quick Release Cradle
- Protective sun cover
- Hardware
- Documentation
