ONWA Digital Electronic Compass with GPS
£369.00
Exc VAT

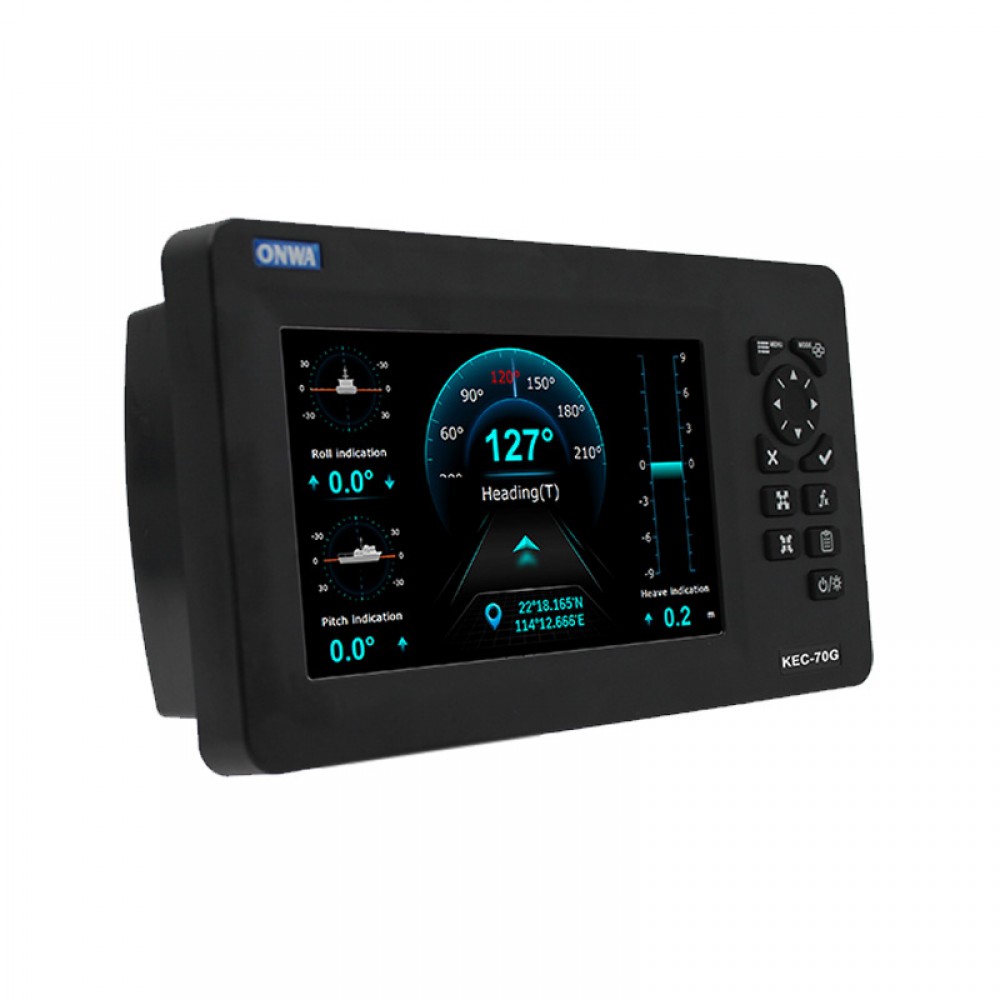

ONWA DIGITAL COMPASS KEC-70GÂ
KEC 70-G electronic compass with KA-GC9A electronic heading sensor.
- Heading Sensor for Radar/ARPA, AIS, ECDIS, Scanning Sonar

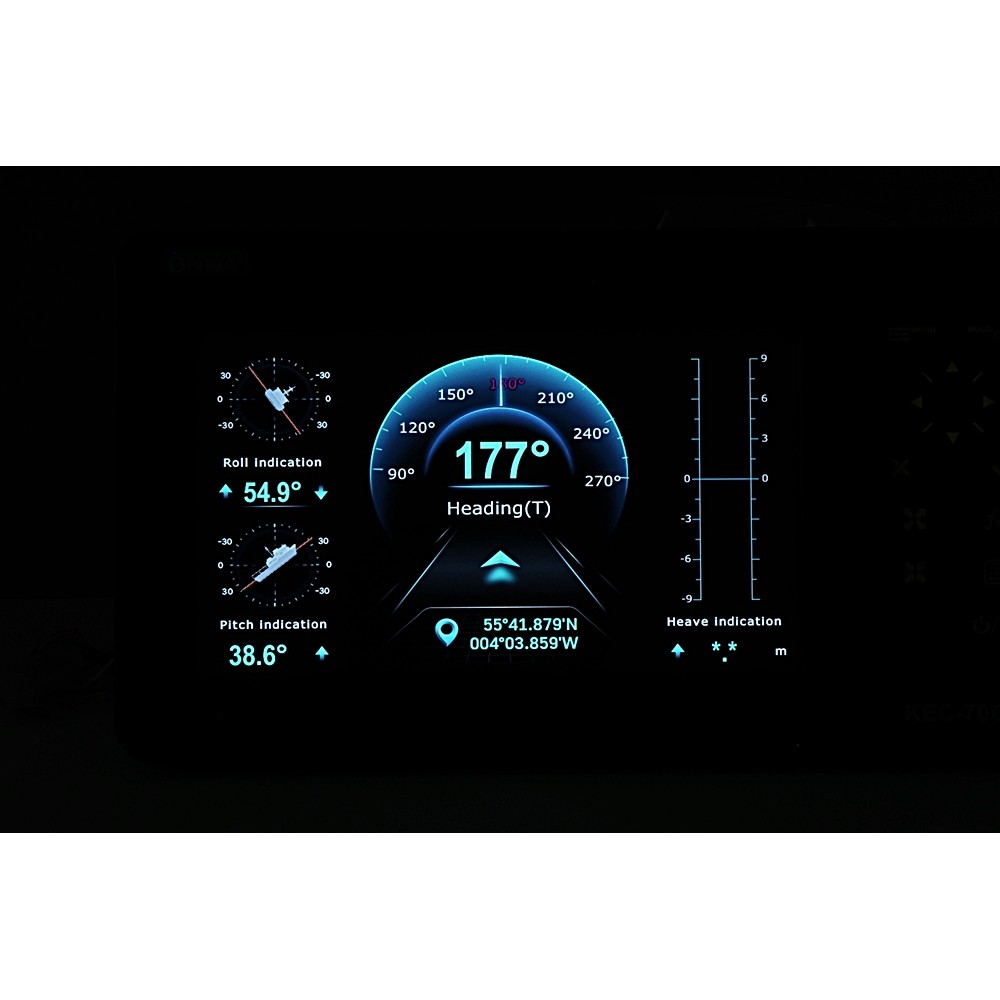

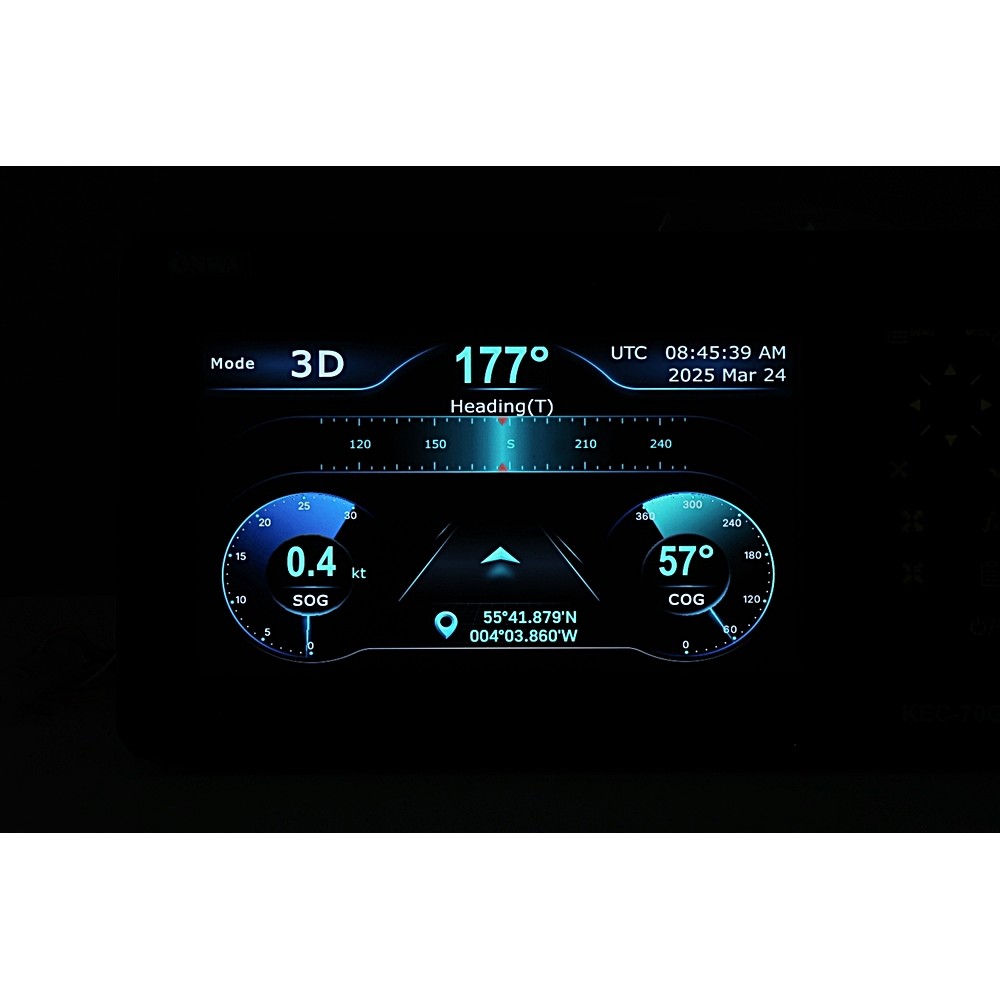

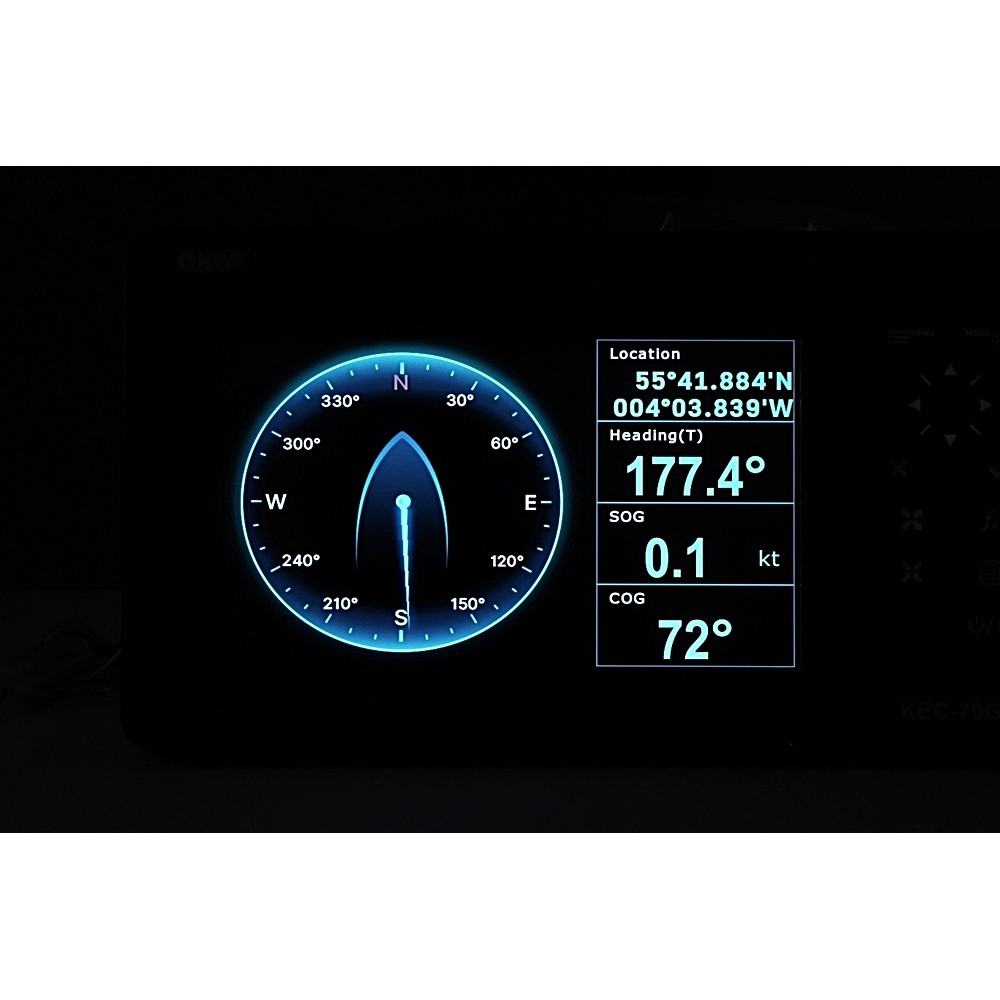

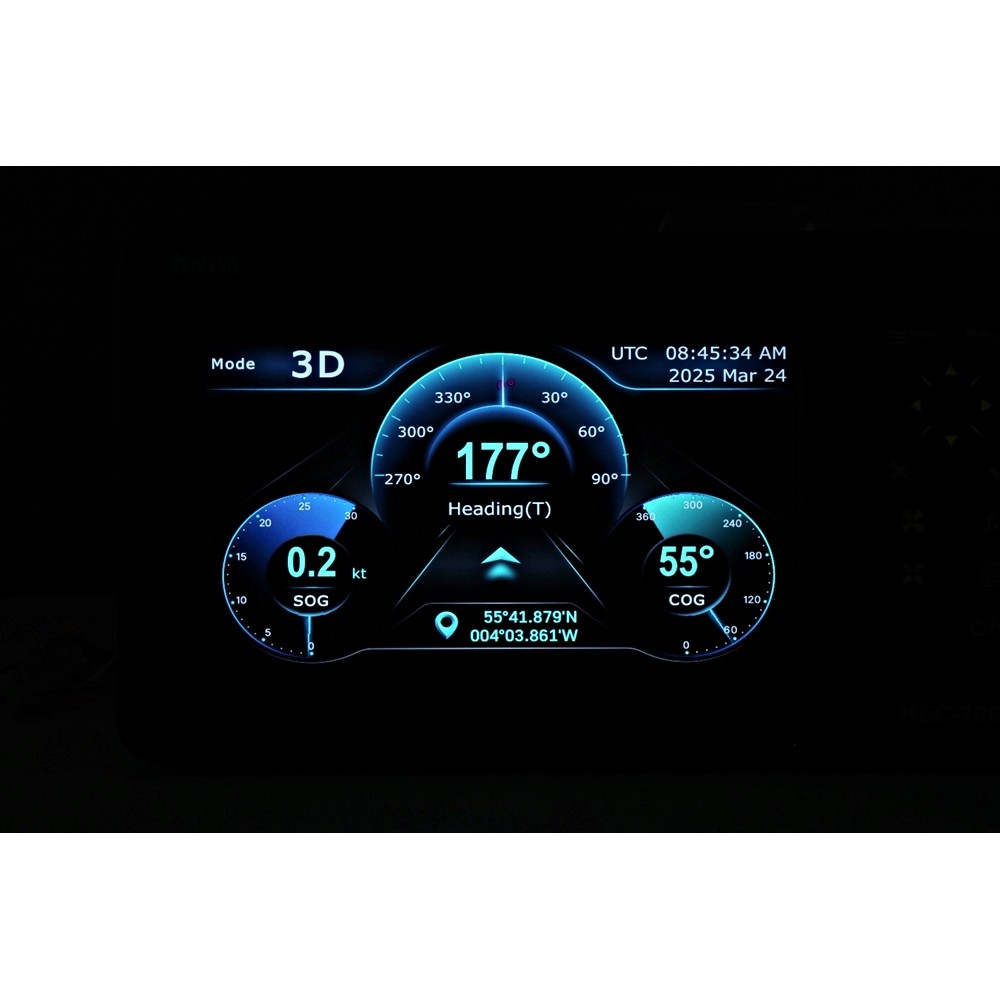

- KEC-70G provides GPS information, Lon/Lat, SOG and COG, with Pitch and Roll Function
- Used with High Accuracy Onwa Marine Heading Sensor KA-GC9A, Satellite
- Compass KA-SC20 or KA-SC90
- Can Correct Magnetic Deviation Manually or Automatically
- Provide NMEA0183 and NMEA2000 Heading and GPS Output
- 2 NMEA0183 output are RS422 Electrical Interface
- There are no mechanical parts such as gimbals or rotating motor, therefore the compass is free from routine maintenance.
- Heading Sensor for Radar/ARPA, AIS, ECDIS, Scanning Sonar
Specification
HEADING Sensor
- KA-GC9A / KA-SC20 / KA-SC90
OUTPOT/INPUT(IEC61162-1)
OUTPUT: 2 x NMEA0183 (RS422)
Output Port 1:
a) Output sentences : GGA, GSA, HEV , RMC and selectable sentences among of HDT, HDM
and HDG
b) Support sentences: RMC, GGA, GSA, GSV, HDT, HDG, HDM, HEV, GMS
c) Baudrate: Selectable among 4800, 9600, 19200, 38400
d) Heading output intervals : Selectable among 100ms, 200ms and 1000ms
Output port 2:
a) Output sentences: Sentences from the heading sensor and selectable sentences among of
HDT, HDM and HDG
b) Support sentences: RMC, GGA, GSA, GSV, HDT, HDG, HDM, HEV, GMS,
c) Baudrate: Selectable among 4800, 9600, 19200, 38400
d) Heading output intervals : Selectable among 100ms, 200ms and 1000ms
NMEA2000
- Supported transmit PGN : 126992, 127250, 129025, 129026, 129029, 129033, 129539
Environmental Conditions
Ambient Temperature
- Display unit : -5 °C to +55 °C
- Heading/GPS sensor unit : -25 °C to +70 °C (for KA-GC9A)
Humidity: 93% ±3% on 40 °C
Waterproofing :Â Display unit : IPX6
Heading/GPS sensor unit : IPX7 (for KA-GC9A)
Power Supply
ELECTRICAL : 10.5 – 32VDC
Protection:Â over-current, over-voltage, power transient and accidental reverse polarity protection
Brochure
2 in stock (can be backordered)
